Assembling the DMX case

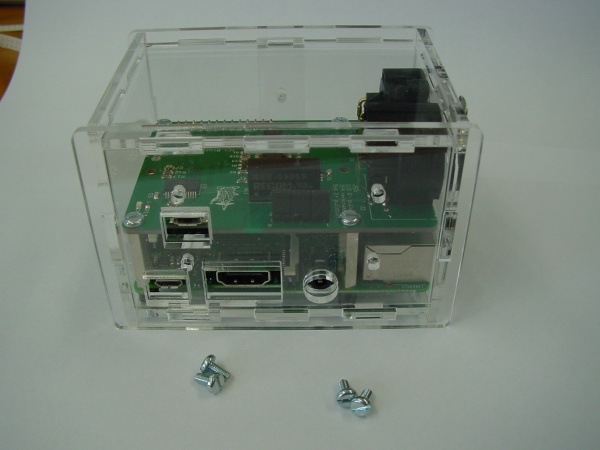

DMX case

Included

Included screws and washers/spacers

10x m3x6
4x m3x12
4x m2.5x10
4x m3x4mm spacer
4x m3x18mm spacer
12x m3 plastic washer

Step 1

4x m3x6
4x m3x12
4x m3x4mm spacer
4x m3x18mm spacer
12x m3 plastic washer

DMX case - step 1

DMX case - step 1

DMX case - step 1

Step 2

DMX case - step 2

Step 3

6x m3x6
4x m2.5x10

DMX case - step 3

DMX case - step 3

DMX case - step 3
