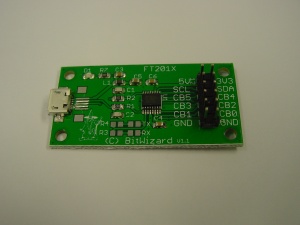

This is the documentation page for the FT201X breakout board. The FT201X breakout board can be bought in the BitWizard shop.

Overview

The FT201X breakout board has an USB connector, one 12-pin IO connector. The brains of the PCB, of course, is an FT201X chip.

External resources

Pinout

The 12-pin connector is connected as follows:

5V3V3
SCLSDA
CBUS5CBUS4
CBUS3CBUS2
CBUS1CBUS0
GNDGND

LEDS

  • The only LED is a power LED

Jumper settings

No jumpers this time :)

Future hardware enhancements

Changelog

1.1

  • Initial public release
