This is the documentation page for the FT231X breakout board. That can be bought in the BitWizard shop.
Overview

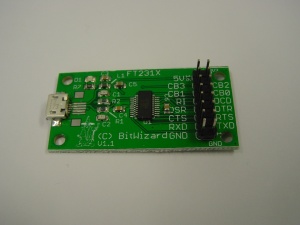

The FT231X breakout board has an USB connector, one 16-pin IO connector. The brains of the PCB, of course, is an FT231X chip.
External resources
Pinout
The 16-pin connector is connected as follows:
| 5V | 3V3 |
| CBUS3 | CBUS2 |
| CBUS1 | CBUS0 |
| RI# | DCD# |
| DSR# | DTR# |
| CTS# | RTS# |
| RXD | TXD |
| GND | GND |
LEDS
- The only LED is a power LED
Jumper settings
No jumpers this time :)
Future hardware enhancements
Changelog
1.1
- Initial public release
