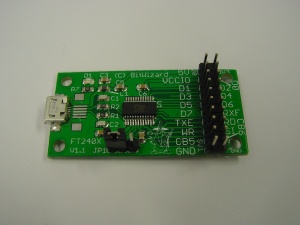

This is the documentation page for the FT240X breakout board. That can be bought in the BitWizard shop.
Overview
The FT240X breakout board has an USB connector, one 20-pin IO connector. The brains of the PCB, of course, is an FT240X chip.
External resources
Pinout
The 20-pin connector is connected as follows:
| 5V | 3V3 |
| VCCIO(jumpered) | DATA0 |
| DATA1 | DATA2 |
| DATA3 | DATA4 |
| DATA5 | DATA6 |
| DATA7 | RXF# |
| TXE# | RD# |
| WR# | SI/WU# |
| CBUS5 | CBUS6 |
| GND | GND |
LEDS
- The only LED is a power LED
Jumper settings
- The only jumper Is for selecting the I/O voltage. 1-2 = 1V8, 2-3 = 3V3.
Future hardware enhancements
Changelog
1.1
- Initial public release
