Blog 07

!BETA!

I am now going to make it possible to use the Raspberry Interface buttons as some kind of keyboard. Later I want to make it possible that instead of just printing letters it will print scripts.

I am first going to try to get it work with button 3.

so we read button 23:s without pressing the button it says; 0101 and with pressing the right button it says 0000

$ bw_tool -I -D /dev/i2c-1 -a 94 -R 23:s
0101
$ bw_tool -I -D /dev/i2c-1 -a 94 -R 23:s
0000

When we make a shell we have to put the code:

if [ `bw_tool -I -D /dev/i2c-1 -a 94 -R 23:s`  = "0000" ]; then
  echo `bw_tool -I -D /dev/i2c-1 -a 94 -t Bananaphone
fi

It will look if the place is 0000 and then if that is true it will print the text after that it is finished

what I found out is that the numbers are mirrored so:

20:s = button 6
21:s = button 5
22:s = button 4
23:s = button 3
24:s = button 2
25:s = button 1

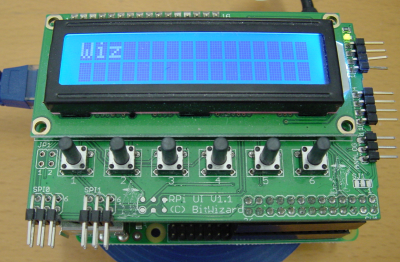

Now to try the full 6 buttons!

When the mirror in mind we make this code:

#!/bin/bash

if [ `bw_tool -I -D /dev/i2c-1 -a 94 -R 25:s`  = "0000" ]; then
  echo `bw_tool -I -D /dev/i2c-1 -a 94 -t W`
elif [ `bw_tool -I -D /dev/i2c-1 -a 94 -R 24:s`  = "0000" ]; then
  echo `bw_tool -I -D /dev/i2c-1 -a 94 -t i`
elif [ `bw_tool -I -D /dev/i2c-1 -a 94 -R 23:s`  = "0000" ]; then
  echo `bw_tool -I -D /dev/i2c-1 -a 94 -t z`
elif [ `bw_tool -I -D /dev/i2c-1 -a 94 -R 22:s`  = "0000" ]; then
  echo `bw_tool -I -D /dev/i2c-1 -a 94 -t a`
elif [ `bw_tool -I -D /dev/i2c-1 -a 94 -R 21:s`  = "0000" ]; then
  echo `bw_tool -I -D /dev/i2c-1 -a 94 -t r`
elif [ `bw_tool -I -D /dev/i2c-1 -a 94 -R 20:s`  = "0000" ]; then
  echo `bw_tool -I -D /dev/i2c-1 -a 94 -t d`
fi

with this code you sadly always have to activate it with

./type

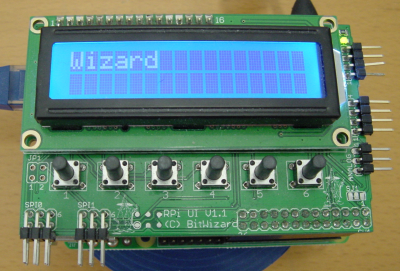

Now we have to make it possible you can just keep typing and don't have to turn it on again after every time you entered

./type.

To do this we will add a sleep of 0.5sec at every button:

#!/bin/bash

 while true; do
 if [ `bw_tool -I -D /dev/i2c-1 -a 94 -R 25:s`  = "0000" ]; then
   echo `bw_tool -I -D /dev/i2c-1 -a 94 -t W`
        sleep 0.5
elif [ `bw_tool -I -D /dev/i2c-1 -a 94 -R 24:s`  = "0000" ]; then
  echo `bw_tool -I -D /dev/i2c-1 -a 94 -t i`
        sleep 0.5
elif [ `bw_tool -I -D /dev/i2c-1 -a 94 -R 23:s`  = "0000" ]; then
  echo `bw_tool -I -D /dev/i2c-1 -a 94 -t z`
        sleep 0.5
elif [ `bw_tool -I -D /dev/i2c-1 -a 94 -R 22:s`  = "0000" ]; then
  echo `bw_tool -I -D /dev/i2c-1 -a 94 -t a`
        sleep 0.4
elif [ `bw_tool -I -D /dev/i2c-1 -a 94 -R 21:s`  = "0000" ]; then
  echo `bw_tool -I -D /dev/i2c-1 -a 94 -t r`
        sleep 0.5
elif [ `bw_tool -I -D /dev/i2c-1 -a 94 -R 20:s`  = "0000" ]; then
  echo `bw_tool -I -D /dev/i2c-1 -a 94 -t d`
         sleep 0.5
fi

done

!BETA!
