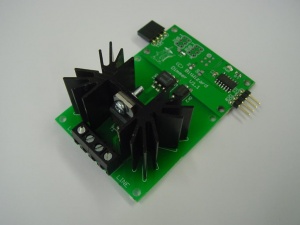

The dimmer


The dimmer can be used to control the intensity of lights. It works the same as regular dimmers that can be bought in any other hardware shop, but can be controlled over I2C. It should work with any I2C-capable device, including the Raspberry Pi, Arduino and many other microcontrollers.

The dimmer can be found here in the shop.


The dimmer is at I2C address 0x9E. Port 0x10 is the intensity. The value written can be between 0 and 255, where 0 is the lowest intensity and 255 is the highest intensity. With bw_tool it can be controlled like this:

bw_tool -I -D /dev/i2c-1 -a 9e -W 10:xx:b

Where xx is the intensity in hex. (i.e. 00-ff, 80 is "half", 40 is "quarter" intensity).

Depending on your load, the first few values from 1-10 may not actually do something. Or they might do too much. In the past we adjusted for that, tweaking it for our test-load, but that tweaking didn't apply to other loads in the field, so we stopped doing that. The value you send is directly used by the hardware, but the lowest may result in even less output than commanded. So if you want your load to be on "low", a minimum value of "8" seems to be safe (and do very little).

Similarly, depending on your load and your mains waveform, setting values near 0xff will actually result in lower output than slightly lower values. Again this depends on lots of stuff and we can't tune it here so that the effect is totally hidden from you. Either limit yourself to a safe maximum like 0xf0, or test how far you can go and then take some margin. On my testsetup 0xfd was sometimes less bright than 0xfc. So around there is the limit so I could take some margin and use 0xf8 as the maximum value I will

When you write zero as the intensity, there will be no triggering of the triac at all, so "completely off".

technical stuff

If you don't care about the technical reasons for the above two paragraphs, skip to the next section.

The module uses a triac as the switching element. When you set the intensity to 50%, we simply trigger the triac at the top of the sinewave from the mains and the triac remains on until the next zero-crossing. Great. But at the ends different problems crop up.

When we want to trigger near the end of the half-wave, the current that starts flowing when the triac is triggered, may be below the so-called hold-current of the triac, so that the triac turns off immediately instead of conducting for a few ms (until the zero-cross) after triggering. On the other hand, we are timing the time to initiate the trigger based on the previous zero-crossing. If we measured a slightly larger value for the half-wave than what is currently happening, then we might even trigger the triac just AFTER the zero crossing. That would mean that the triac is on a whole half-wave instead of just a small part. You'll see flashes if this happens. Just use a slightly larger minimum value if this happens.


address datasize description
0x10 byte set/read intensity. 0 off. 0x08-0xf0 from low to high intensity. values outside this range at your own risk.
0x14 short delta. When in a fade, use this step every 10ms. Signed 16 bit number.
0x15 short fade length (remaining). Set this to non-zero to start a fade. Reads zero when the current fade is finished.

So far all registers are read/write. (starting version 1.2). Before 1.2 only register 10 was implemented and it could not be read back.


For a fade, the intensity is kept with 8 bits after the binary point. The delta, also with 8 bits after the binary point is added to the current intensity each 10ms (each half-period).

Calculating a fade

If you want to take 10 seconds or 1000 steps, to go from 0x40 to 0xc0, you calculate the difference to be 0x80 or 128. This means that you need a total of 128*256 (8 binary bits behind the binary point) = 32768 total added to your extended (8bits behind the point) intensity value. So you need 32768/1000 = 32 or 33 added per time tick. You can adjust for the last few values that by adjusting the length after the fade.

If you want to start a new fade right after the current fade, poll the fade length register say at 500ms intervals. When below 500ms (a value of 50 decimal returned), you schedule a sleep from 10ms * the returned number, so that you are woken near the time that the fade runs to an end.

Another way to think about this is to think of the dimmer setting as a 16 bit integer 0-65535. For a fade you instruct the device to add a value to the current value every 10 milliseconds for a certain number of steps. In the example below I started out with a fade of 32 (0x20) and rounded off the "1000" (0x3e8) to 1024 (0x400) because it was easier in Hex. But now the fade comes out exactly: 32*1024=32786 (0x20 * 0x400 = 0x8000).

Examples using bw_tool

To put the dimmer on 0x40 (quarter)

  bw_tool -a 9e -W 10:40:b

then to fade to 0xc0 (three quarters)

  bw_tool -a 9e -W 14:20:s 15:400:s

and then back:

  bw_tool -a 9e -W 14:ffe0:s 15:400:s
