This is the documentation page for the FT220X breakout board. That can be bought in the BitWizard shop.
Overview

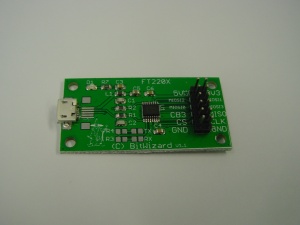

The FT220X breakout board has an USB connector, one 12-pin IO connector. The brains of the PCB, of course, is an FT220X chip.
External resources
Pinout
The 12-pin connector is connected as follows:
| 5V | 3V3 |
| MIOSI2 | MIOSI3 |
| MIOSI0 | MIOSI1 |
| CBUS3 | MISO |
| CS# | CLK |
| GND | GND |
Please note: On version 1.1 of the boards, the silkscreen markings for MIOSI1 and MIOSI3 are switched!
LEDS
- The only LED is a power LED
Jumper settings
No jumpers this time :)
Future hardware enhancements
Changelog
1.1
- Initial public release
