This is the documentation page for the FT221X breakout board. That can be bought in the BitWizard shop.
Overview

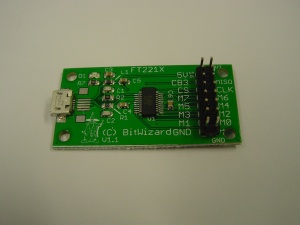

The FT221X breakout board has an USB connector, one 16-pin IO connector. The brains of the PCB, of course, is an FT221X chip.
External resources
Pinout
The 16-pin connector is connected as follows:
| 5V | 3V3 |
| CBUS3 | MISO |
| CS# | CLK |
| MIOSI7 | MIOSI6 |
| MIOSI5 | MIOSI4 |
| MIOSI3 | MIOSI2 |
| MIOSI1 | MIOSI0 |
| GND | GND |
LEDS
- The only LED is a power LED
Jumper settings
No jumpers this time :)
Future hardware enhancements
Changelog
1.1
- Initial public release
