This is the documentation page for the FT230X breakout board. That can be bought in the BitWizard shop.

Overview

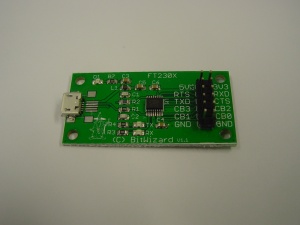

The FT230X breakout board has an USB connector, one 12-pin IO connector. The brains of the PCB, of course, is an FT230X chip.

External resources

Pinout

The 12-pin connector is connected as follows:

5V3V3
RTS#RXD
TXDCTS#
CBUS3CBUS2
CBUS1CBUS0
GNDGND

LEDS

  • The board is equipped with a power-LED, an Rx-LED and a Tx-LED

Jumper settings

No jumpers this time :)

Future hardware enhancements

Changelog

1.1

  • Initial public release
