I2C splitter

From BitWizard Wiki
Jump to navigation Jump to search

The I2C splitter can be bought in the BitWizard shop.

General info

Based on the PCA9548A chip from NXP

I2C address:
1110 000 tru 1110 111 (jumper selectable)

Each I2C output has 4K7 pull-up resistors.

The address would be written "0x70" for the Linux I2C-tools. BitWizard "naming convention" would call this address "0xe0".

Physical dimensions

  • Board outline: 50x25mm
  • Mounting hole diameter: 3mm
  • Mounting hole pitch: 44x19mm (3mm from board edge)


Hold the board such that the 4x8 pin array is on the left.

The 4x8 array has from left to right, GND (labeled "V-" because "GND" didn't fit), SDA (labeled DA), SCL (CL), and VCC (V+).

From top to bottom you will find bus 0 at the top to bus 7 at the bottom.

Connect your "master device" to the connector on the left or right. The pinout is GND, SDA, SCL, VCC from bottom to top.

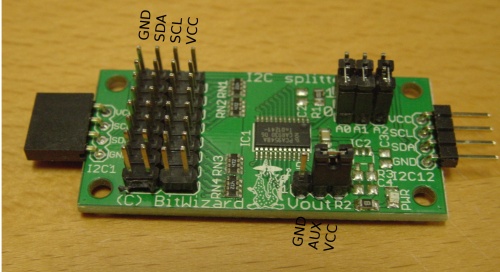

The annotated i2c_splitter board
The i2c_splitter board

The "Vout" connector provides GND/AUX/VCC. By placing a jumper on AUX/VCC, you can configure your slave I2C busses to use the same power supply as your main VCC (usually 5V or 3.3V). If you require a different voltage, you can apply that voltage using a two-pin connector using GND/AUX on the same connector. If you ordered the special version prepared for a specific output voltage, no connection/jumper is necessary on the VOUT connector. You can measure the output voltage on the AUX pin if you want (there are 8 other pins that make this voltage available, but it's there. :-) )


Address jumpers

It is recommended you use address 0 for the PCA9548A, unless that clashes with something on your I2C bus. Put all three jumpers to the position nearest you, in the position marked "0".

Power jumper/power connector

If your board has a jumper labeled "VOUT" near the bottom, this can be used to select the voltage level on the output bus. Connect a jumper on the rightmost two pins (AUX/VCC) to use the power from the "master" connector on the left or right of the PCB. If that is undesired, for example if your master is 5V and your slave devices are 3.3V, you can connect a 3.3V power source to the ground pin on the left and the VAUX pin in the middle.

Using the board

On the raspberry pi, the board can be controlled with i2cset:

i2cset -y 0 0x70 0x01

to for example select the first bus.
