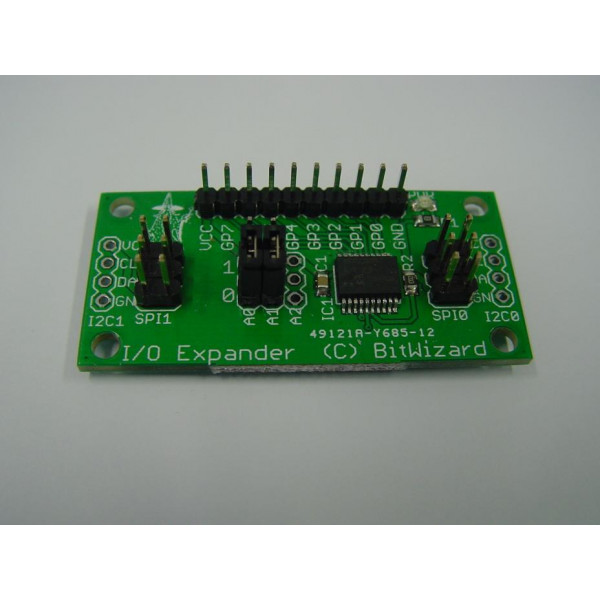

• IO Expander

A breakout board that grants 8 additional digitial IO pins using the MCP23008 (I2C) or MCP23S08 (SPI) chip.

Both the SPI and I2C version contain 2 connectors, so daisy chaining multiple boards is an option.

Since it uses SPI or I2C, this board can be used by almost all microcontrollers, such as Atmel AVRs, Arduinos or PICs. A Raspberry Pi should also be able to control this module.

Documentation for the complete board
MCP23008/MCP23S08 Datasheet

Write a review

Please login or register to review

IO Expander

  • Brand: BitWizard
  • Product Code: IO-Expander
  • Availability: In Stock
  • €9.95

Available Options

Tags: io, io expander, expander, MCP23008, MCP23S08, i2c, spi
