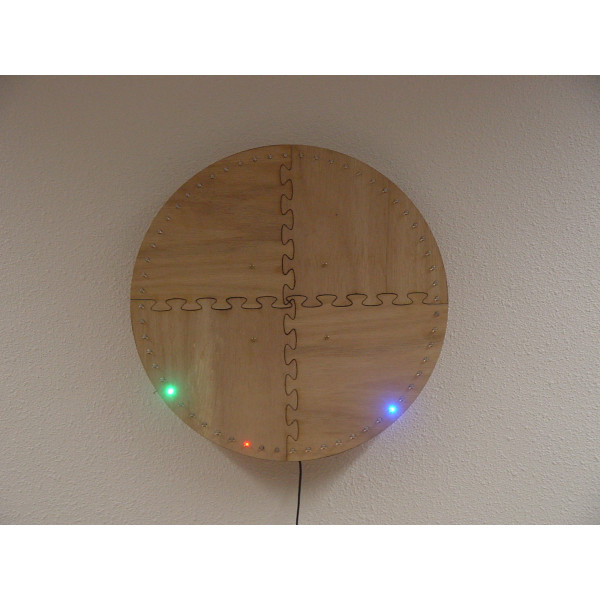

This kit contains almost everything you will need to build the clock, you only have to make a clockface.
This is a kit, so you'll have to solder everything yourself. A pre-soldered PCB is available at additional cost.

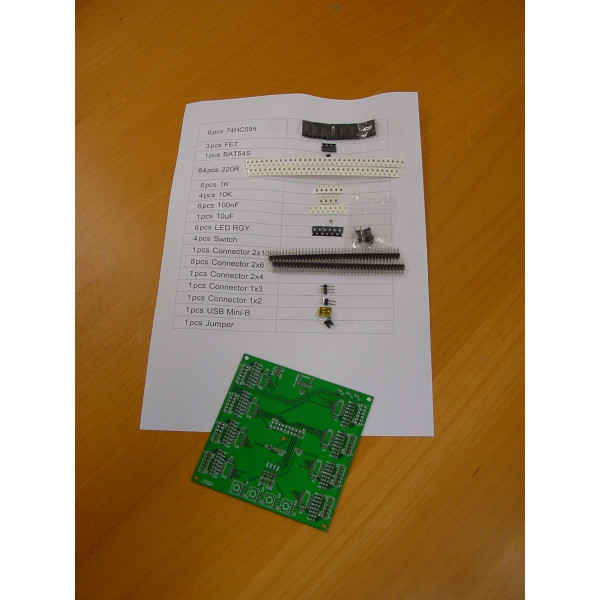

Contents:
1 PCB
8 74HC595 Shift register
3 N-channel FET
1 BAT54S Diode
64 220 Ohm resistors
6 1K Ohm resistors
4 10K Ohm resistors
8 100nF capacitors
1 10uF capacitor
6 SMD LEDs
4 pushbuttons
1 2x10 header
8 2x6 headers
1 2x4 header
1 1x3 header
1 1x2 header
1 jumper
1 mini-USB connector

60 Common-anode RGB LEDs (plus some spares)
8 14-pin ICD connectors
2 meter 14-way ribbon cable
1 meter heatshrink

1 USB-Multio

1 Mini-USB cable
1 USB power supply

Datasheets:
Documentation for the complete project

Write a review

Please login or register to review

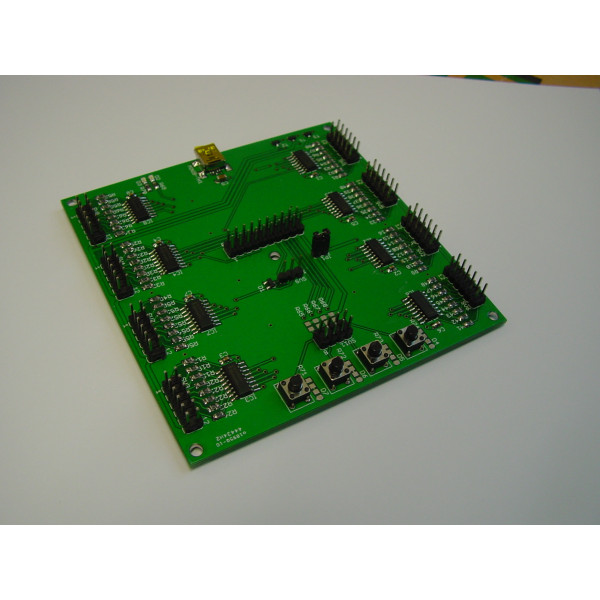

RGB clock - PCB with Components, LEDs and Cables

  • Brand: BitWizard
  • Product Code: RGB Clock pcb+components leds cables
  • Availability: In Stock
  • €99.95


Tags: rgb, rgb clock, clock, led, rgb led, klok, rgb klok
